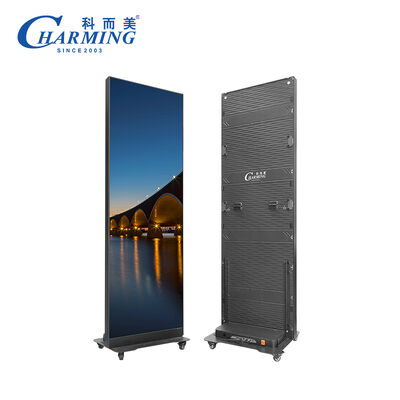

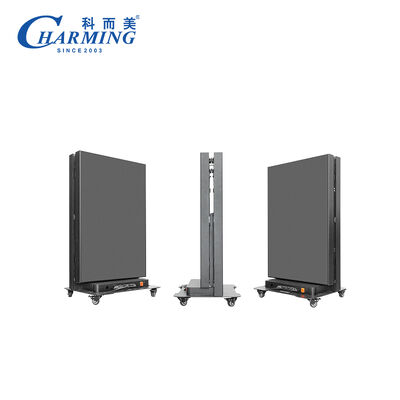

High Refresh Rate GOB Technology Foldable LED Poster Display with Intelligent Mobile Control
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Charming |
| 証明: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| モデル番号: | P1.86、P2、P2.5 |
お支払配送条件:
| 最小注文数量: | 2個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンケース、木製ケース、フライトケース |
| 受渡し時間: | 支払い後30営業日 |
| 支払条件: | L/C、T/T、Western Union、PayPal、Cash |
| 供給の能力: | 週に500個 |
|
詳細情報 |
|||
| 視野角: | 140° | 保護レベル: | IP43 |
|---|---|---|---|
| キャブネット材料: | アルミニウム合金 | メンテナンス方法: | フロントメンテナンス |
| グレーレベル: | 14-16ビット | 使用温度: | -20〜40°C |
製品の説明
High Refresh Rate GOB Process Foldable LED Poster Display With Audio
Product Overview
High Refresh Rate Foldable LED Poster Screen with GOB Technology and Intelligent Mobile Control
Advanced foldable LED poster screen featuring high refresh rate technology, GOB protection, and intelligent mobile control for superior display performance.
Product Features
- High Refresh Rate
- GOB Technology
- Intelligent Mobile Control
Technical Specifications
| Parameter | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.86mm | 2mm | 2.5mm |
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/43Scan | 1/40Scan | 1/32Scan |
| Pixel Density (dot/m) | 288906 | 202500 | 160000 |
| Brightness (CD/m²) | 600 | 600 | 800 |
| Dimension | 640*1920*490mm |
| Max. Power | 600W |
| Cabinet Weight | 48.8kg |
| Refresh Rate | 7680Hz |
Installation Guide
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the boxes
- Identify power and signal cables, then insert them into the corresponding box connections
- Connect the main signal and power cables to the computer and controller, then debug the screen for successful operation
Packaging Options
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
Team Spirit
この製品の詳細を知りたい
