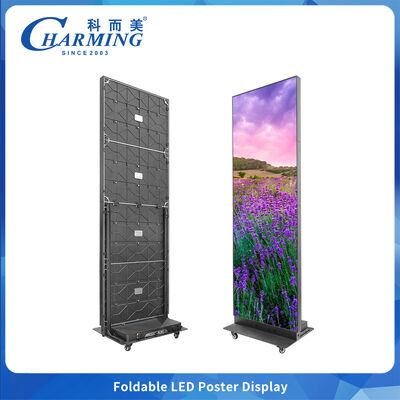

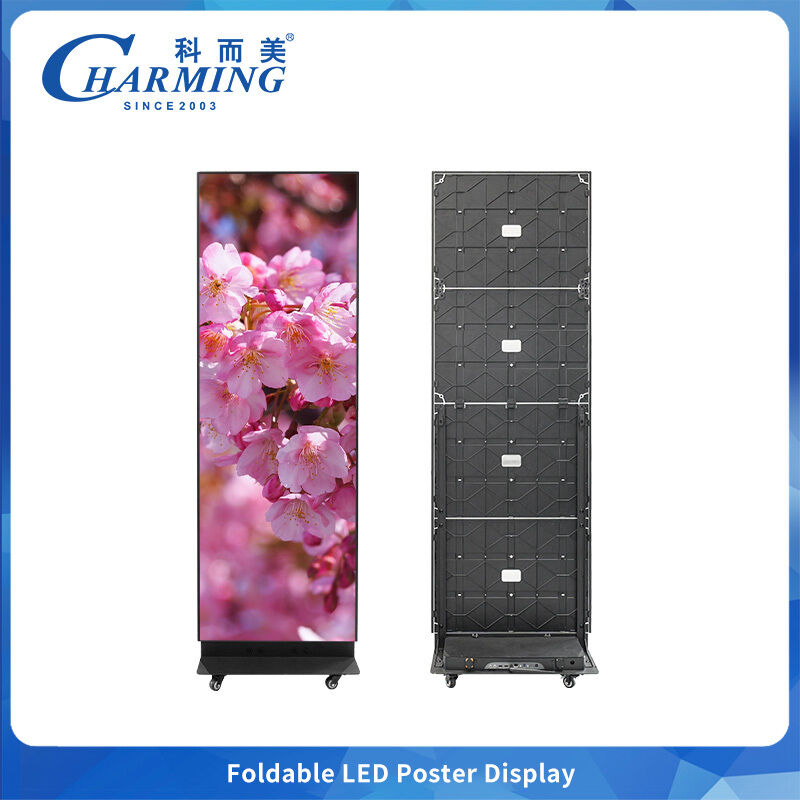

High Refresh Rate LED Video Wall Display with Aluminum Alloy Foldable Poster Screen and Intelligent Mobile Control for Engaging Digital Content
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Charming |
| 証明: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| モデル番号: | P1.86 P2 P25 |
お支払配送条件:
| 最小注文数量: | 2個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンケース、木製ケース、フライトケース |
| 受渡し時間: | 支払後10 営業日 |
| 支払条件: | L/C、T/T、Western Union、PayPal、Cash |
| 供給の能力: | 週に500個 |
|
詳細情報 |
|||
| 視野角: | 140° | 保護レベル: | IP43 |
|---|---|---|---|
| キャブネット材料: | アルミニウム合金 | メンテナンス方法: | フロントメンテナンス |
| グレーレベル: | 14-16ビット | 使用温度: | -20〜40°C |
| 使用湿度: | 10%～65%RH | 動作電圧: | AC220V、50/60HZ |
| ハイライト: | foldable LED video wall display,aluminum alloy LED display,mobile control video wall |
||
製品の説明
High Refresh Rate LED Video Wall Display with Aluminum Alloy Foldable Poster Screen and Intelligent Mobile Control for Engaging Digital Content
| Type Number | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension (mm) | 657*2075*490mm | ||
| Pixel Pitch (mm) | 1.86mm | 2mm | 2.5mm |
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Pixel Density (dot/m) | 288,906 | 202,500 | 160,000 |
| Max. Power (W) | 600W | ||
| Cabinet Weight (kg) | 48.8kg | ||
| Refresh Rate (Hz) | 7680Hz | ||
| Brightness (CD/m²) | 600 | 600 | 800 |
Product Features
- High Refresh Rate - Delivers smooth, flicker-free video playback
- GOB Technology - Protection for enhanced durability and reliability
- Intelligent Mobile Control - Easy operation and management via mobile devices
Other detail:
Installation Process
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the cabinet
- Identify power cables and signal cables, then insert them into the corresponding cabinet connections
- Connect the main signal cable and main power cable to the computer and controller, then complete screen setup after debugging
Packaging Options
We offer multiple packaging solutions including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transportation.
