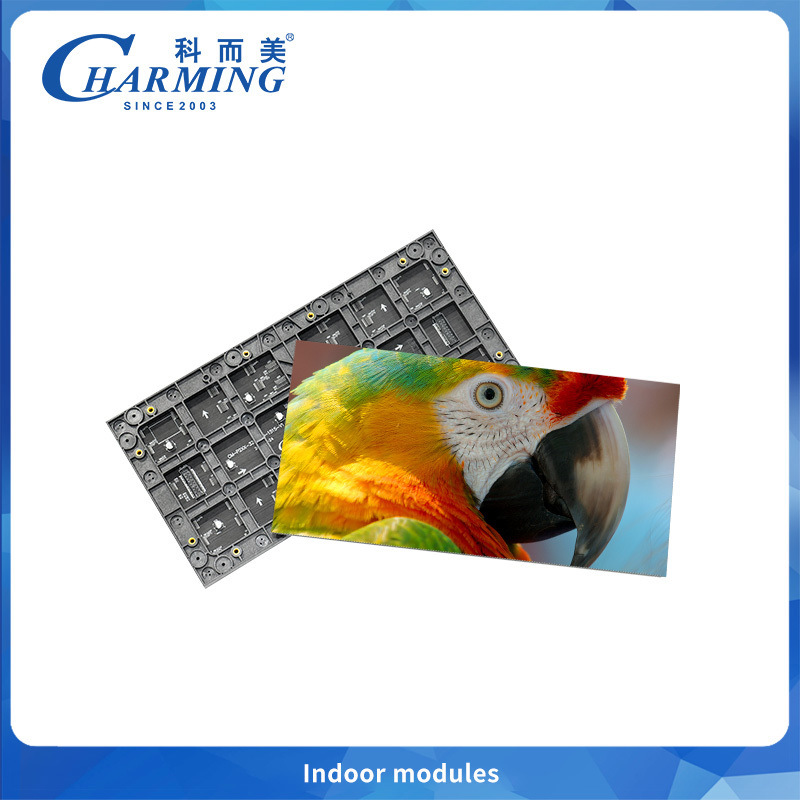

Custom Full-Color P1.25 P1.86 P2 Indoor LED Display High Definition Advertising Screen for Conference Rooms Small Pitch HD Advertising
商品の詳細:
| 起源の場所: | 中国。 |
| ブランド名: | Charmingled. |
| 証明: | CE, ROHS, LVD, EMC, CB, BIS. |
| モデル番号: | P1.53 P1.86 P2 P2.22 P2.5。 |
お支払配送条件:
| 最小注文数量: | 1000のPCS。 |
|---|---|
| 価格: | Negotiable. |
| パッケージの詳細: | カートンケース、木製ケース、フライトケース。 |
| 受渡し時間: | 支払い後30営業日。 |
| 支払条件: | L/C、T/T、Western Union、PayPal、Cash |
| 供給の能力: | 1週間あたり10000個。 |
|
詳細情報 |
|||
| 寿命。: | ≧50000時間。 | グレーレベル。: | 14-16ビット。 |
|---|---|---|---|
| リフレッシュレート（Hz）: | 7680Hz3840Hz1920Hz。 | 使用温度: | -20〜50℃。 |
| 使用湿度: | 10％〜90％RH | 動作電圧: | DC5V。 |
| ハイライト: | Custom full-color LED display screen,Small pitch HD advertising screen,Indoor LED video wall display |
||
製品の説明
Charming Co., Ltd. has always been committed to technological innovation and superior service in the global entertainment lighting and LED industry.
In 2003, we introduced the world's first LED display into entertainment applications and have continued to lead market trends ever since. This pioneering spirit has established us as a top-rated brand in China's entertainment LED sector.
Guided by our corporate philosophy "Charming Achieve Beauty," we operate an international-standard, fully-automated LED display production line within a facility exceeding 10,000 square meters. For over 22 years, we have delivered quality products and services to clients in more than 150 countries and regions.
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number. | SP2. | SP2.22. | SP2.5. | SP3. | SP4. | SP4. |
| Dimension (MM). | 320x160. | 320x160. | 320x160. | 192x192. | 256x128. | 256x256. |
| Pixel Pitch (MM). | 2. | 2.22. | 2.5. | 3. | 4. | 4. |
| LED Standard. | SMD1515. | SMD2020. | SMD2020. | SMD2020. | SMD2020. | SMD2020. |
| Scan Mode. | 1/40 Scan. | 1/36 Scan. | 1/32 Scan. | 1/32 Scan. | 1/32 Scan. | 1/32 Scan. |
| Pixel Density (Dot/m²). | 250000. | 202500. | 160000. | 111111. | 62500. | 62500. |
| Module Max.Power (W). | 22. | 20. | 24. | 10. | 5. | 10. |
| Best Viewing Distance (M). | ≥2.5. | ≥2.5. | ≥2.5. | ≥3. | ≥4. | ≥4. |
| Refresh Rate (Hz). | 7680. | 3840/1920. | 3840/1920. | 3840/1920. | 3840/1920. | 3840/1920. |
| Brightness (CD/m²). | 800. | ≥700. | ≥800. | ≥600. | ≥400. | ≥400. |
| Viewing Angle. | 120°. | 120°. | 120°. | 120°. | 120°. | 120°. |
| Protection Level. | IP42. | IP42. | IP42. | IP42. | IP42. | IP42. |
| Grey Level. | 14-16 bit. | 14-16 bit. | 14-16 bit. | 14-16 bit. | 14-16 bit. | 14-16 bit |
| Working Temperature. | -20 ~ 50℃. | -20 ~ 50℃. | -20 ~ 50℃. | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ |
| Working Humidity. | 10% ~ 90%RH. | 10% ~ 90%RH. | 10% ~ 90%RH. | 10% ~ 90%RH | 10% ~ 90%RH. | 10% ~ 90%RH |
| Life Span. | ≥50000 Hours. | ≥50000 Hours. | ≥50000 Hours. | ≥50000 Hours. | ≥50000 Hours. | ≥50000 Hours |
| Working Voltage. | DC 5V. | DC 5V. | DC 5V. | DC 5V. | DC 5V | DC 5V. |
- 2-Year Full Warranty - Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance - Only material costs apply after the warranty period
- Free Technical Training - Includes hands-on operation & maintenance training at our factory
- Comprehensive Documentation - Operation manuals, software, test reports, CAD drawings, and expert guidance provided
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
1. Can I request a sample before placing a full order?
Yes, we provide samples of both LED modules and full screens for quality and performance evaluation.
2. What is the typical delivery timeline?
LED modules: 1–5 days
Full LED screens (<100㎡): within 15 working days
3. What warranty is included?
All products come with a one-year warranty covering parts and performance.
4. What after-sales support do you offer?
We provide 24/7 online assistance, a dedicated service hotline, and a professional support team to resolve issues promptly.
5. Can displays be made in any custom size?
Sizes are customized based on standard module and cabinet dimensions to ensure visual consistency and performance.
6. Do you offer installation support?
Yes, we supply installation drawings and provide real-time remote guidance via TeamViewer if needed.
7. What details are needed to get a quote?
Please share the display size and intended application so we can propose a suitable solution.
8. What are the shipping options?
We offer both air and sea freight. Sea shipping is more cost-effective for larger orders.
9. Which payment methods are supported?
We accept T/T, Western Union, and Alibaba Trade Assurance, which we recommend for secure order handling.
