Pantalla Led Indoor Advertising Led Display Screen Panel Concert Stage Backdrop Led Video Wall P1.5 P2
商品の詳細:
| 起源の場所: | chaina |
| ブランド名: | Charmingled |
| 証明: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| モデル番号: | P1.86 P2 P2.22 P2.5 |
お支払配送条件:
| 最小注文数量: | 150 PC |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンケース、木製ケース、飛行ケース |
| 受渡し時間: | 支払い後30営業日 |
| 支払条件: | L/C、T/T、Western Union、PayPal、Cash |
| 供給の能力: | 週に1000個 |
|
詳細情報 |
|||
| 寿命: | 50000時間以上 | グレーレベル: | 14-16ビット |
|---|---|---|---|
| リフレッシュレート（Hz）: | 7680Hz/3840Hz/1920Hz | 使用温度: | -20〜50°C |
| 使用湿度: | 10％〜90％RH | 動作電圧: | DC 5V |
| ハイライト: | P1.5 LED video wall panel,indoor advertising LED display,concert stage backdrop screen |
||
製品の説明

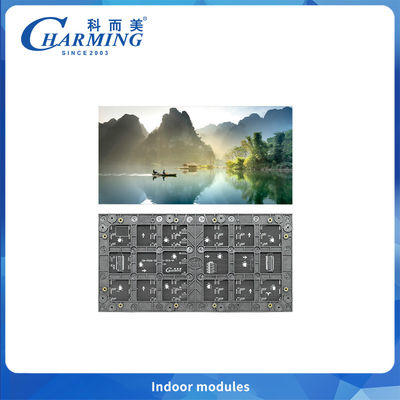

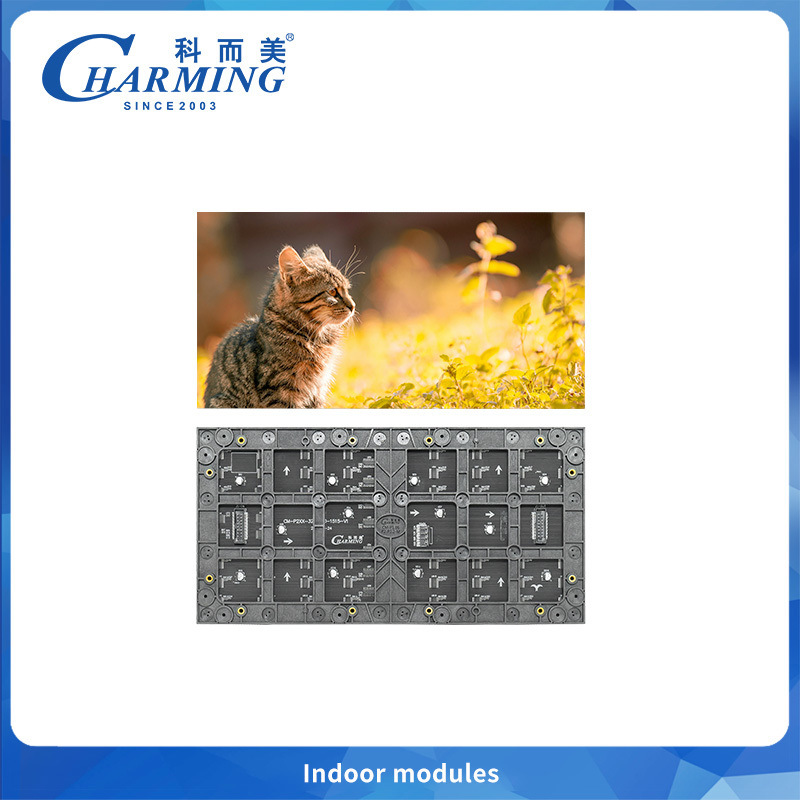

Pantalla Led Indoor Advertising Led Display Screen Panel Concert Stage Backdrop Led Video Wall P1.5 P2
High Definition Small Pitch LED for Large Screen Advertising & Conference Applications
Charming Co., Ltd. has built a reputation as a trusted partner in entertainment lighting and LED solutions through continuous innovation and client-focused service.
Our journey of innovation started in 2003 with the groundbreaking introduction of LED displays to entertainment venues. This milestone marked the beginning of our ongoing leadership, culminating in our recognition as a leading brand in China.
We back our products with substantial R&D investment, evidenced by nearly 100 patents, and adhere to strict quality standards verified by ISO9001, CE, CCC, CB, ROHS, and SASO certifications.
Operating from a modern 10,000+ sqm factory with fully automated lines, we embody "Charming Achieve Beauty" in every product. Our 22-year track record includes successful deliveries to a worldwide network spanning over 150 countries and regions.
Technical Specifications
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number | SP2 | SP2.22 | SP2.5 | SP3 | SP4 | SP4 |
| Dimension (MM) | 320x160 | 320x160 | 320x160 | 192x192 | 256x128 | 256x256 |
| Pixel Pitch (MM) | 2 | 2.22 | 2.5 | 3 | 4 | 4 |
| LED Standard | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Scan Mode | 1/40 Scan | 1/36 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan |
| Pixel Density (Dot/m²) | 250000 | 202500 | 160000 | 111111 | 62500 | 62500 |
| Module Max.Power (W) | 22 | 20 | 24 | 10 | 5 | 10 |
| Best Viewing Distance (M) | ≥2.5 | ≥2.5 | ≥2.5 | ≥3 | ≥4 | ≥4 |
| Refresh Rate (Hz) | 7680 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 |
| Brightness (CD/m²) | 800 | ≥700 | ≥800 | ≥600 | ≥400 | ≥400 |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° |
| Protection Level | IP42 | IP42 | IP42 | IP42 | IP42 | IP42 |
| Grey Level | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Working Temperature | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ |
| Working Humidity | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH |
| Life Span | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
Warranty & Support
Comprehensive 2-Year Protection
- 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance: Only material costs apply after warranty period
- Free Technical Training: Includes hands-on operation & maintenance training
- Complete Documentation: Operation manuals, software, test reports, CAD drawings
After-Sales Service Package
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
Frequently Asked Questions
Can I order samples for testing?
Yes, we welcome sample orders to test and check quality for both LED modules and complete screens.
What is the delivery time?
LED modules: 1-5 days. Complete screens (under 100m²): within 15 working days.
What warranty do you offer?
We provide a 2-year comprehensive warranty for all products.
How is the after-sales service?
Our professional team provides 24-hour online support with dedicated hotlines for complaints and feedback.
Can we customize display sizes?
Display sizes are determined by module and cabinet dimensions for optimal performance.
How to install the LED display?
We provide detailed CAD drawings or remote TeamViewer support for installation.
What shipping methods are available?
We recommend sea freight for cost efficiency, though air shipping is also available.
What payment methods do you accept?
We accept TT, Western Union, and recommend Ali Trade Assurance for secure transactions.
