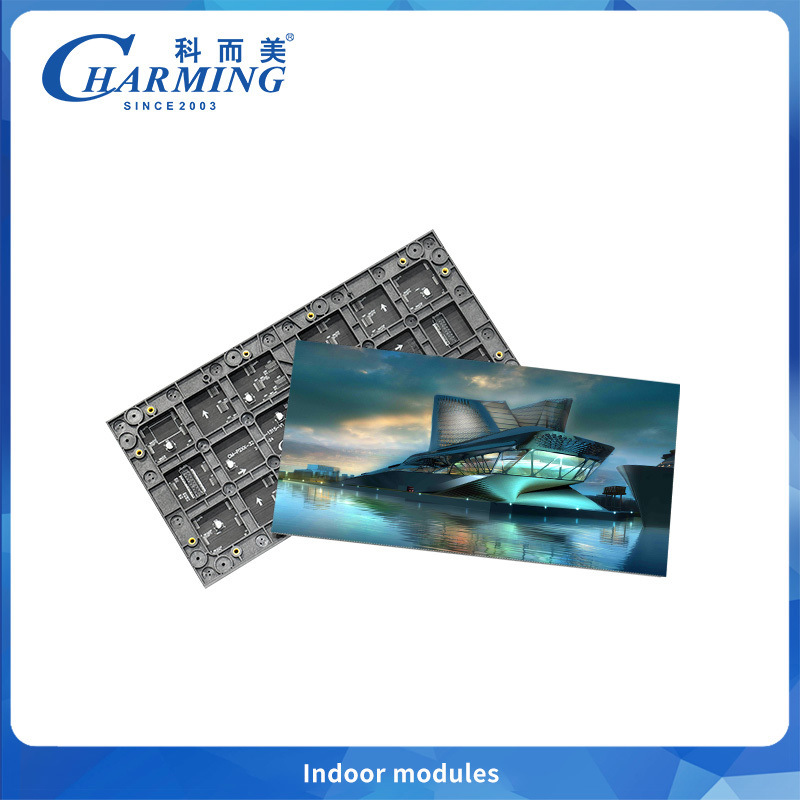

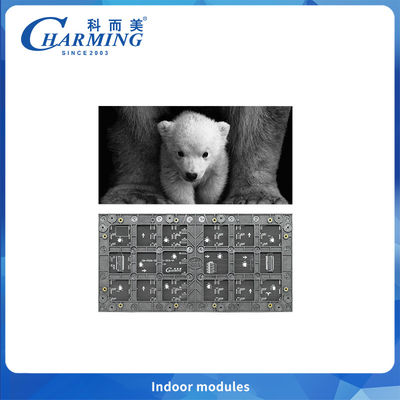

Indoor Full Color Led Screen Display Led Advertising Panel High Resolution Led Display Digital Panel
商品の詳細:
| 起源の場所: | chaina |
| ブランド名: | Charmingled |
| 証明: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| モデル番号: | P1.86 P2 P2.22 P2.5 |
お支払配送条件:
| 最小注文数量: | 100個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンケース、木製ケース、飛行ケース |
| 受渡し時間: | 支払い後30営業日 |
| 支払条件: | L/C、T/T、Western Union、PayPal、Cash |
| 供給の能力: | 1 週間あたりの 100000 PC |
|
詳細情報 |
|||
| 寿命: | 50000時間以上 | グレーレベル: | 14-16ビット |
|---|---|---|---|
| リフレッシュレート（Hz）: | 7680Hz/3840Hz/1920Hz | 使用温度: | -20〜50°C |
| 使用湿度: | 10％〜90％RH | 動作電圧: | DC 5V |
| ハイライト: | indoor full color LED display panel,high resolution LED advertising screen,digital LED video wall display |
||
製品の説明
For over two decades, Charming Co., Ltd. has dedicated itself to innovation and excellence in the global entertainment lighting and LED display market.
We are proud of our legacy since 2003, when we pioneered the integration of LED displays into entertainment settings, initiating a trend that we still shape today. Our leadership has earned us a position as a preferred brand in China's entertainment lighting industry.
The company holds an extensive intellectual property portfolio of nearly 100 patents and maintains full compliance with international standards including ISO9001, CE, CCC, CB, ROHS, and SASO.
Our manufacturing capabilities, rooted in the "Charming Achieve Beauty" principle, feature a 10,000+ square meter facility with automated production lines. We have built a global presence, supplying quality solutions to more than 150 countries and regions for 22 years.
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number | SP2 | SP2.22 | SP2.5 | SP3 | SP4 | SP4 |
| Dimension (MM) | 320x160 | 320x160 | 320x160 | 192x192 | 256x128 | 256x256 |
| Pixel Pitch (MM) | 2 | 2.22 | 2.5 | 3 | 4 | 4 |
| LED Standard | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Scan Mode | 1/40 Scan | 1/36 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan |
| Pixel Density (Dot/m²) | 250000 | 202500 | 160000 | 111111 | 62500 | 62500 |
| Module Max.Power (W) | 22 | 20 | 24 | 10 | 5 | 10 |
| Best Viewing Distance (M) | ≥2.5 | ≥2.5 | ≥2.5 | ≥3 | ≥4 | ≥4 |
| Refresh Rate (Hz) | 7680 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 |
| Brightness (CD/m²) | 800 | ≥700 | ≥800 | ≥600 | ≥400 | ≥400 |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° |
| Protection Level | IP42 | IP42 | IP42 | IP42 | IP42 | IP42 |
| Grey Level | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Working Temperature | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ |
| Working Humidity | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH |
| Life Span | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
- 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance: Only material costs apply after warranty period
- Free Technical Training: Includes hands-on operation & maintenance training
- Complete Documentation: Operation manuals, software, test reports, CAD drawings
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
