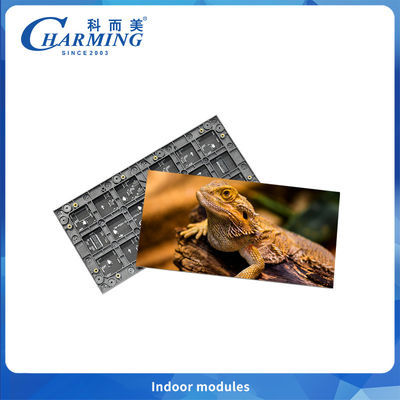

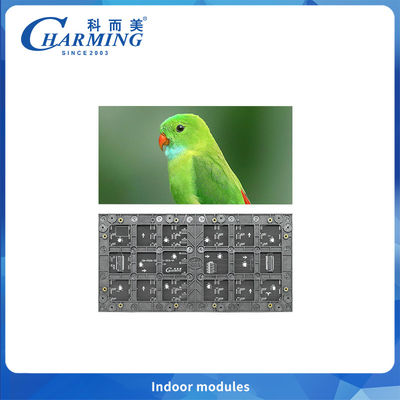

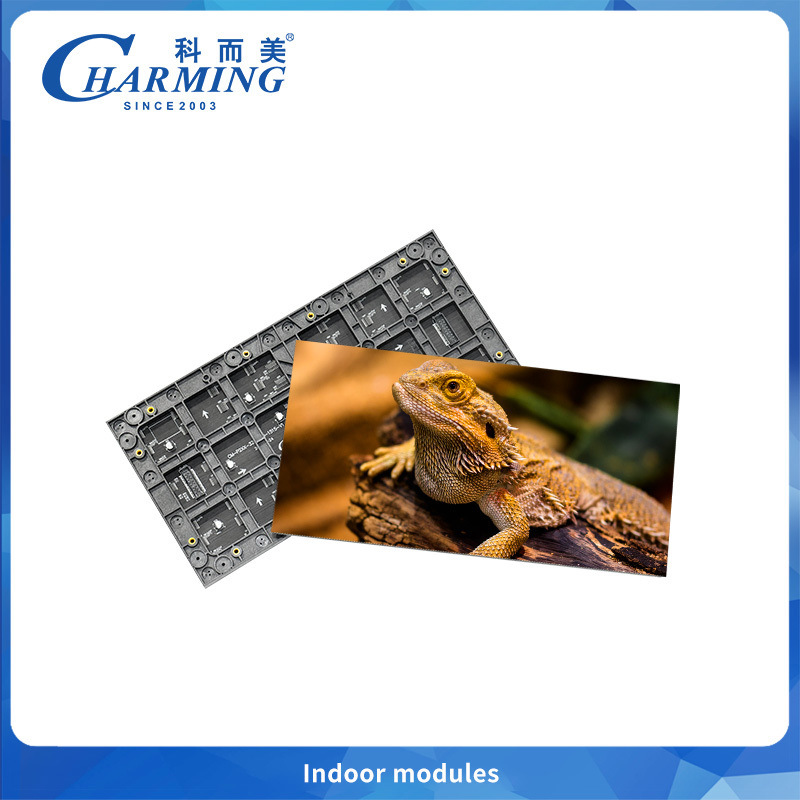

P2 320*160mm LED Video Wall Panel Small Pixel Pitch Indoor Advertising Screen LED Module
商品の詳細:
| 起源の場所: | チャイナ; |
| ブランド名: | Charmingled; |
| 証明: | CE, ROHS, LVD, EMC, CB, BIS, UL; |
| モデル番号: | P1.86 P2 P2.22 P2.5; |
お支払配送条件:
| 最小注文数量: | 10個のPC |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンケース、木製ケース、飛行ケース |
| 受渡し時間: | 支払い後30営業日 |
| 支払条件: | L/C、T/T、Western Union、PayPal、Cash |
| 供給の能力: | 1 週間あたりの 100000 PC |
|
詳細情報 |
|||
| タイプ番号: | SP2.5 SP3 SP4 | 視野角: | 120° |
|---|---|---|---|
| LED標準: | SMD1515SMD2020 | 動作温度、温度: | -20~50℃' |
| 動作湿度: | 10%~90%RH' | 動作電圧: | DC5V。 |
| ハイライト: | small pixel pitch LED video wall,320x160mm LED advertising screen,indoor LED display module |
||
製品の説明
With a steadfast commitment to advancing global entertainment lighting and LED technology, Charming Co., Ltd. has established itself as an industry pioneer.
Our legacy began in 2003 when we launched the world's first LED display for entertainment applications, setting a new standard that we continue to evolve. We have since grown into one of China's most trusted brands in this field.
Our technical excellence is validated by nearly 100 patents and key international certifications such as ISO9001, CE, CCC, CB, ROHS, and SASO.
Embracing our "Charming Achieve Beauty" philosophy, we maintain a 10,000+ sqm manufacturing plant equipped with a fully automated production line. Throughout our 22-year history, we have served customers across over 150 countries and regions with reliable products and comprehensive support.
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number | SP2 | SP2.22' | SP2.5' | SP3' | SP4' | SP4 |
| Dimension (MM) | 320x160 | 320x160' | 320x160' | 192x192 | 256x128' | 256x256 |
| Pixel Pitch (MM) | 2' | 2.22' | 2.5' | 3' | 4' | 4' |
| LED Standard | SMD1515 | SMD2020' | SMD2020' | SMD2020 | SMD2020' | SMD2020' |
| Scan Mode | 1/40 Scan' | 1/36 Scan' | 1/32 Scan' | 1/32 Scan | 1/32 Scan' | 1/32 Scan' |
| Pixel Density (Dot/m²) | 250000' | 202500' | 160000' | 111111' | 62500' | 62500' |
| Module Max.Power (W) | 22' | 20' | 24' | 10' | 5 | 10 |
| Best Viewing Distance (M) | ≥2.5' | ≥2.5' | ≥2.5' | ≥3' | ≥4 | ≥4 |
| Refresh Rate (Hz) | 7680' | 3840/1920' | 3840/1920' | 3840/1920' | 3840/1920 | 3840/1920 |
| Brightness (CD/m²) | 800' | ≥700' | ≥800' | ≥600' | ≥400' | ≥400' |
| Viewing Angle | 120°' | 120°' | 120°' | 120°' | 120°' | 120°' |
| Protection Level | IP42' | IP42' | IP42' | IP42' | IP42' | IP42' |
| Grey Level' | 14-16 bit' | 14-16 bit' | 14-16 bit' | 14-16 bit' | 14-16 bit' | 14-16 bit' |
| Working' Temperature | -20 ~ 50℃' | -20 ~ 50℃' | -20 ~ 50℃' | -20 ~ 50℃' | -20 ~ 50℃' | -20 ~ 50℃' |
| Working Humidity | 10% ~ 90%RH' | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH |
| Life Span' | ≥50000 Hours' | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
- 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance: Only material costs apply after warranty period
- Free Technical Training: Includes hands-on operation & maintenance training
- Complete Documentation: Operation manuals, software, test reports, CAD drawings
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
