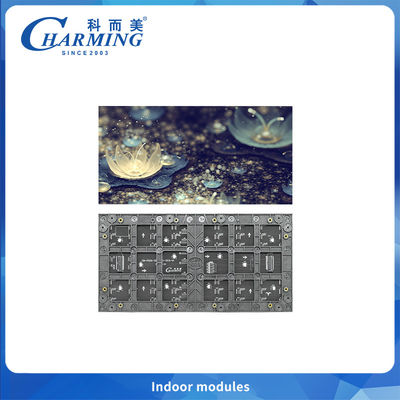

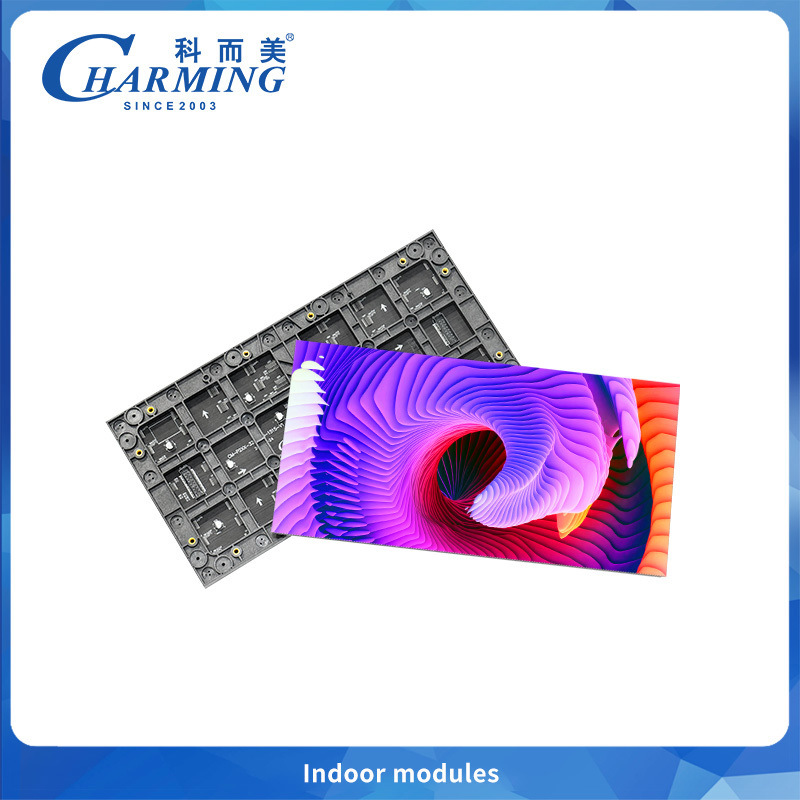

P2.0 LED Display Indoor Module for Silk-Smooth Visuals 800CD/m² and 7680Hz Refresh Rate for Vivid Displays
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | charming |
| 証明: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| モデル番号: | P2 |
お支払配送条件:
| 最小注文数量: | 10個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンケース、木製ケース、飛行ケース |
| 受渡し時間: | 支払い後7営業日 |
| 支払条件: | ウエスタンユニオン、L/C、T/T、ペイパル、現金 |
| 供給の能力: | 週に10000個 |
|
詳細情報 |
|||
| リフレッシュレート（Hz）: | 7680Hz | 光度 (CD/): | 800 |
|---|---|---|---|
| 寸法(mm): | 320×160mm | ピクセル密度 (点): | 250000ドット/平方メートル |
| 寿命: | 100000時間 | 保護レベル: | IP42 |
| 使用湿度: | 10%~90%RH | 視野角: | 120° |
| 使用温度: | -20~50℃ | 動作電圧: | DV 5V |
| ハイライト: | P2.0 LED display module,indoor LED video wall,high refresh rate LED display |
||
製品の説明
Specification
| Type Number | P2 |
| Dim ension(MM) | 320*160*MM |
| Module Maximum power(w) | 22 |
| LED Standard | SMD 1515 |
| Scan Mode | 1/40Scan |
| Pixel Density(Dot/m²) | 150000Dot/m² |
| Refresh Rate(Hz) | 7680Hz |
| Brightness(CD/ m²) | 800 |
| Pixel Pitch(MM) | 2 |
| Protection Level | IP42 |
| Grey Level | 14-16bit |
| Working Temperature | -20~50°C |
| Working Humidity | 10％~90％RH |
| Life Span | 100000 Hours |
| Working Voltage | DC 5V |
Company introduction
Comprehensive Warranty & Support Services
We stand firmly behind our products with strong warranties and lifelong support:
✅ Full 2-Year Warranty
Covering all displays, modules, and components — including free repair or replacement for any defects.
✅ Lifetime Maintenance
After the warranty period, we continue to provide support with only material costs charged.
Performance Optimization Services
To help you get the most out of your LED solution, we offer:
-
-
Free Professional Training
Hands-on sessions for screen operation and maintenance. -
Complete Technical Documentation
Including manuals, software guides, and CAD installation drawings. -
Quality Assurance
Certified test reports and product certifications. -
Tailored Technical Support
Expert consultation and customized solutions.
-
Dedicated After-Sales Protection
Our ongoing service commitment features:✓ On-site technical support (upon request)
✓ 24/7 remote troubleshooting
✓ Proactive maintenance guidance
✓ Timely software and firmware upgrades
✓ Reliable spare parts supply
-
