詳細情報 |
|||
| タイプ番号: | P2.604 P2.976 P3.91 ` | 寸法 (mm): | 500x500x79MM 500x1000x79MM` |
|---|---|---|---|
| Max.Power （W）: | 200W 400W` | キャビネット重量 ((kg): | 6.4KG 11KG ` |
| 明るさ（CD/m）: | ≥4500 カンデラ/㎡` | LED規格: | SMD1415 SMD1415 SMD1921` |
| 視野角: | 140°` | 保護レベル: | IP65 |
| リフレッシュレート ((Hz): | 7680Hz ` | スキャンモード: | 1/24 スキャン 1/21 スキャン 1/16 スキャン |
| ピクセル密度（dot/m）: | 147456 ドット/分 112896 ドット/㎡ 65536 ドット/分 ` | キャビネット材質: | アルミ合金 |
| ハイライト: | P3.91 LED video wall outdoor,500x500mm IP65 LED display,waterproof LED video wall display |
||
製品の説明
| Attribute | Value |
|---|---|
| Type Number | P2.604 P2.976 P3.91 |
| Dimension (MM) | 500×500×79MM 500×1000×79MM |
| Max. Power (W) | 200W 400W |
| Cabinet Weight (KG) | 6.4KG 11KG |
| Brightness (CD/m²) | ≥4500 CD/㎡ |
| LED Standard | SMD1415 SMD1415 SMD1921 |
| Viewing Angle | 140° |
| Protection Level | IP65 |
| Refresh Rate (Hz) | 7680Hz |
| Scan Mode | 1/24 Scan 1/21 Scan 1/16 Scan |
| Pixel Density (Dot/m²) | 147456 Dot/m² 112896 Dot/㎡ 65536 Dot/m² |
| Cabinet Material | Aluminum Alloy |

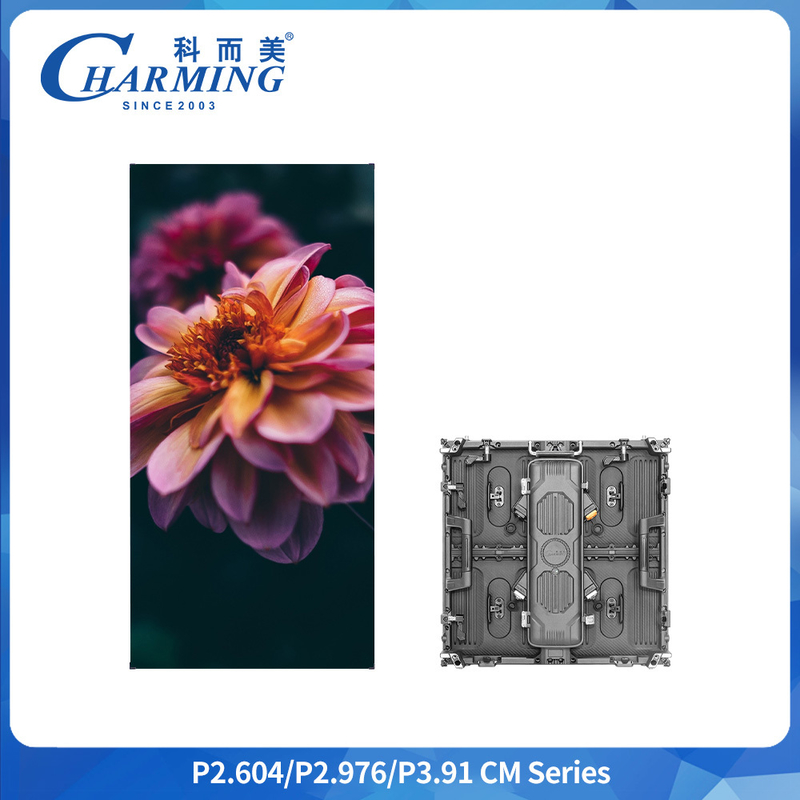

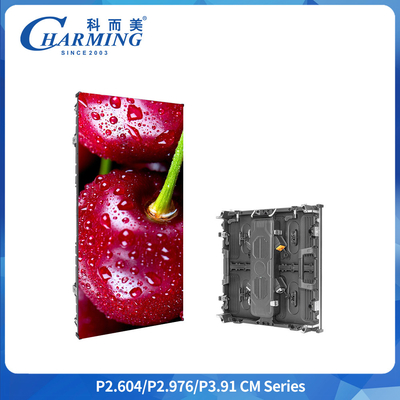

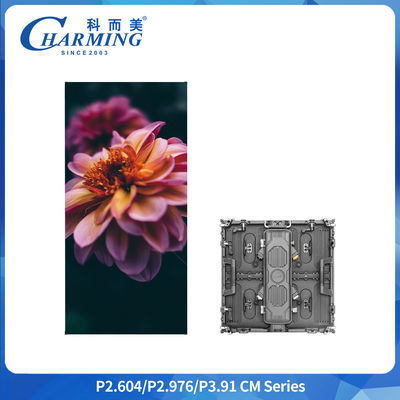

500×500 500×1000 P3.91 LED Screen 3×4m Outdoor LED Display is a high-performance LED wall solution ideal for rental applications, stage screens, and outdoor video walls.
- CM Series with multiple pixel pitch options (P2.604, P2.976, P3.91)
- Aluminum alloy cabinet construction
- Excellent rigidity and deformation-resistant
- Precise splicing capability for various shapes
- High brightness ≥4500 CD/㎡
- Wide 140° viewing angle
- IP65 protection rating
We are an LED display application enterprise integrating production, sales and research, and have developed into an international first-class entertainment commercial display LED intelligent manufacturer.
Adhering to our core values of "pragmatism, openness, innovation, and integrity", we hold nearly 100 patents and maintain ISO9001, CE, CCC, CB, ROHS, SASO certifications.
With a 10,000+ square meter production facility and 22 years of experience, we've served customers in over 150 countries and regions with high-quality LED display solutions.
